Nexus™ Hi-Way Filter Sock Twin Wall Smooth Bore Heavy Duty PE - punched

Code: NEXUSHDFS

Nexus™ Hi-Way from Iplex Pipelines is a heavy-duty, double wall polyethylene pipe combining a smooth inner wall with a corrugated outer wall. The two walls are welded together during manufacture, resulting in a high stiffness wall section with smoothbore flow performance.

Nexus Hi-way can be used in the following applications:

  • Subsoil drains under roads
  • Construction worksite drainage
  • Subsoil drainage or driveways
  • Public landfill drainage

Complies with NZ Transport Agency Specification TNZ F/2.  Comes supplied with pre-applied filtersock and coupler.



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
NEXUS110100HDFS 110mm 100m - - 1 Black pipe with red stripe supplied with pre-applied filter sock and coupler Enquire
NEXUS16045HDFS 160mm 45m - - 1 Black pipe with red stripe supplied with pre-applied filter sock and coupler Enquire

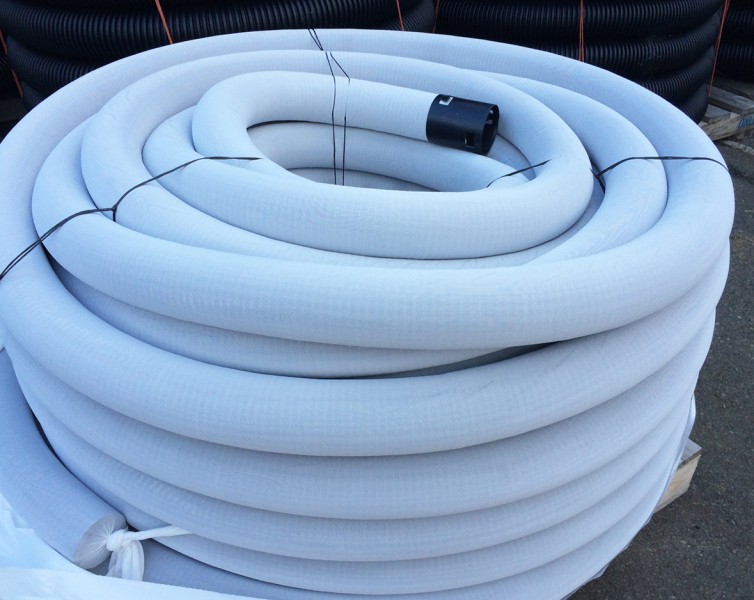

Comes with Filter Sock

Comes with per-fitted filter sock to prevent particles and fines entering the pipe and clogging flow.

Versatile

Nexus™ Hi-way can be used for subsoil drains under roads, construction worksite drainage, subsoil drainage under carriage ways or driveways and for drainage of rubbish tips and public landfills.

Range

Nexus™ Hi-Way is available in 110mm and 160mm O.D. sizes. Each coil or length has a factory fitted coupling for easy and reliable jointing.

Fittings Compatibility

Nexus™ Hi Way is fully compatible for with the range of Novaflo fittings from Iplex.

Patented Coupling

Easy to install, the large locking teeth provide excellent joint security and has a centre register to correctly locate pipes.

Compliant

Has an unpunched invert as specified in Transit NZ F2: 1989 and is manufactured to conform with the ‘Class 500’ stiffness requirement of Transit NZ specification NRB F/2:1989.

Product code

NEXUS110100HDFS

Nominal OD (mm)

Size (mm)

110mm

Coupling

Qty

1

Colour

Black pipe with red stripe supplied with pre-applied filter sock and coupler

  Enquire
Product code

NEXUS16045HDFS

Nominal OD (mm)

Size (mm)

160mm

Coupling

Qty

1

Colour

Black pipe with red stripe supplied with pre-applied filter sock and coupler

  Enquire

Versatile

Nexus™ Hi-way can be used for subsoil drains under roads, construction worksite drainage, subsoil drainage under carriage ways or driveways and for drainage of rubbish tips and public landfills.

Range

Nexus™ Hi-Way is available in 110mm and 160mm O.D. sizes. Each coil or length has a factory fitted coupling for easy and reliable jointing.

Fittings Compatibility

Nexus™ Hi Way is fully compatible for with the range of Novaflo fittings from Iplex.

Patented Coupling

Easy to install, the large locking teeth provide excellent joint security and has a centre register to correctly locate pipes.

Comes with Filter Sock

Comes with per-fitted filter sock to prevent particles and fines entering the pipe and clogging flow.

Compliant

Has an unpunched invert as specified in Transit NZ F2: 1989 and is manufactured to conform with the ‘Class 500’ stiffness requirement of Transit NZ specification NRB F/2:1989.
