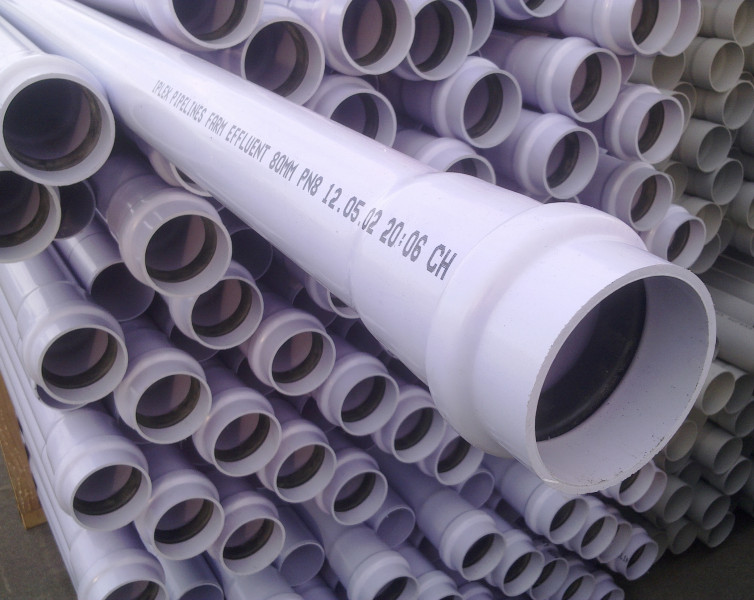

Effluent PVC-U Pipe

Code: Z822

Iplex Effluent PVC Pipe is the effluent mainline alternative to PE pipe and is designed for the disposal of dairy shed effluent.  Other benefits include:

  • Solid lilac colour for instant identification as effluent pipe
  • Manufactured from tough PVC-U
  • Rubber Ring Joints
  • Conforms to AS/NZS 1477 PVC pipes & fittings for pressure applications Series 1
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
Z822.80PN6.6 LILAC 80mm 6m PN6 Rubber Ring Joint 60 Lilac Enquire
Z822.100PN6.6 LILAC 100mm 6m PN6 Rubber Ring Joint 40 Lilac Enquire
Z822.80PN8.6 LILAC 80mm 6m PN8 Rubber Ring Joint 60 Lilac Enquire
Z822.100PN8.6 LILAC 100mm 6m PN8 Rubber Ring Joint 40 Lilac Enquire

Fast installation

Rigid 6m lengths with proven jointing system allows fast installation without the need for specialist uncoiling equipment or on-site H&S issues.

Range

Available in diameters 80mm & 100mm Pressure Rating 6-bar & 8-bar. Ideal for mainline Farm Dairy Effluent applications.

Lilac colour

Differentiation from stock or potable water lines.

Large Bore

Larger bore than equivalent PE effluent pipe means more hydraulic efficiency.

Quality and performance assurance

Conforms to AS/NZS 1477 PVC pipes & fittings for pressure applications Series 1

Compatible with PVC pressure fittings and Farm Dairy Effluent system componentry

Off-the-shelf versatility for system design and installation.

Product code

Z822.80PN6.6 LILAC

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

60

Colour

Lilac

  Enquire
Product code

Z822.100PN6.6 LILAC

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

40

Colour

Lilac

  Enquire
Product code

Z822.80PN8.6 LILAC

Nominal OD (mm)

Size (mm)

80mm

Coupling

Qty

60

Colour

Lilac

  Enquire
Product code

Z822.100PN8.6 LILAC

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

40

Colour

Lilac

  Enquire

Fast installation

Rigid 6m lengths with proven jointing system allows fast installation without the need for specialist uncoiling equipment or on-site H&S issues.

Range

Available in diameters 80mm & 100mm Pressure Rating 6-bar & 8-bar. Ideal for mainline Farm Dairy Effluent applications.

Lilac colour

Differentiation from stock or potable water lines.

Large Bore

Larger bore than equivalent PE effluent pipe means more hydraulic efficiency.

Quality and performance assurance

Conforms to AS/NZS 1477 PVC pipes & fittings for pressure applications Series 1

Compatible with PVC pressure fittings and Farm Dairy Effluent system componentry

Off-the-shelf versatility for system design and installation.
