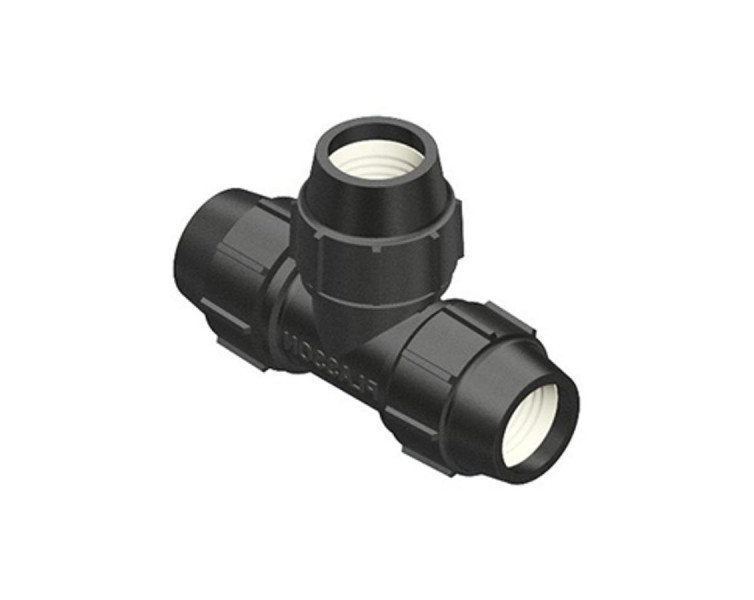

Plasson Compression Slip Tee 90º F&F&F

Code: 2502

(40-63mm 12.5 Bar)

Provides branch off PE pipe mains within OD range 20mm – 63mm to an equal OD branch. Manufactured without internal pipe end stops to increase ease in connecting coiled pipe ends and to allow fitting to be located anywhere along pipe length if pipe repair required

Plasson line 7 mechanical fittings are made from high-grade polypropylene copolymer for increased strength, impact and chemical resistance. Split rings are made from hard wearing acetal (POM) and “o” rings and seals are made from NBR.

  • Pressure fittings for use in plumbing, rural, civil and mining applications
  • Compliant with ASNZS4129:2008 Fittings for Polyethylene pipe for pressure applications
  • Majority of range PN16 rated
ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
2502.20 20mm - 16 Bar Compression 140 / 10 Black Enquire
2502.25 25mm - 16 Bar Compression 100 / 5 Black Enquire
2502.32 32mm - 16 Bar Compression 60 / 5 Black Enquire
2502.40 40mm - 12.5 Bar Compression 40 Black Enquire
2502.50 50mm - 12.5 Bar Compression 25 Black Enquire
2502.63 63mm - 12.5 Bar Compression 16 Black Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.

Product code

2502.20

Nominal OD (mm)

Size (mm)

20mm

Coupling

Qty

140 / 10

Colour

Black

  Enquire
Product code

2502.25

Nominal OD (mm)

Size (mm)

25mm

Coupling

Qty

100 / 5

Colour

Black

  Enquire
Product code

2502.32

Nominal OD (mm)

Size (mm)

32mm

Coupling

Qty

60 / 5

Colour

Black

  Enquire
Product code

2502.40

Nominal OD (mm)

Size (mm)

40mm

Coupling

Qty

40

Colour

Black

  Enquire
Product code

2502.50

Nominal OD (mm)

Size (mm)

50mm

Coupling

Qty

25

Colour

Black

  Enquire
Product code

2502.63

Nominal OD (mm)

Size (mm)

63mm

Coupling

Qty

16

Colour

Black

  Enquire

Efficient

Forms a fast, end load resistant, watertight joint, with no bore restriction.

Easy to Use

Rapid assembly, push-fit and tighten. PLASSON fittings from 20mm to 63mm diameter do not need to be disassembled before making a connection.

Versatile

Range allows joints to be formed with other pipe materials by way of male and female couplings with BSP threads or PLASSON Universal Coupler (code 2512).

Compatible

Can be used with GREENLINE, REDLINE™, RURAL BLACK, BLACKLINE PN16 and ALKATHENE™ 20mm and 25mm diameters.

Durable

Manufactured from a high impact resistant polypropylene material.

Quality

Manufactured and tested to AS/NZS 1460 “Fittings for polyethylene (PE) pipe for pressure applications”.
