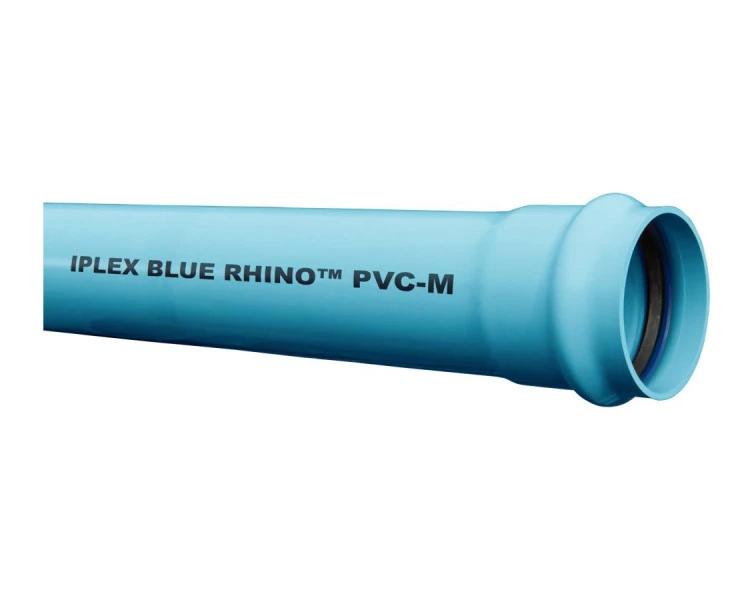

Blue Rhino PN12 PVC-M Pressure Pipe Imperial CIOD Series 2 Rubber Ring Joint

Code: 1850

BLUE RHINO™ is a tough, high strength PVC (PVC-M) pressure pipe suitable for a wide variety of applications. Modified PVC incorporates advanced technology which gives BLUE RHINO™ pipe superior qualities over conventional PVC-U pipe including: higher impact resistance, greater ductility, lighter weight and an increase in hydraulic capacity.  Applications include but are not limited to:

  • Urban portable water supply
  • Agricultural irrigation and rural water supply
  • Industrial processing fluids

Manufactured in accordance with AS/NZS4765 Modified PVC (PVC-M) pipes for pressure applications for Series 2 pipe C.I.O.D. (Cast Iron Outside Diameter Compatible). Iplex PVC-M pipes are independently certified in accordance with the test requirements of AS/NZS 4765. Approval Mark Certificate Number WM 74531.





ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
1850.100PN12.6 RRJ** 100mm 6m 12 Bar Rubber Ring Joint 32 Blue Enquire
1850.150PN12.6 RRJ** 150mm 6m 12 Bar Rubber Ring Joint 18 Blue Enquire
1850.200PN12.6 RRJ** 200mm 6m 12 Bar Rubber Ring Joint 15 Blue Enquire
1850.250PN12.6 RRJ** 250mm 6m 12 Bar Rubber Ring Joint 12 Blue Enquire
1850.300PN12.6 RRJ** 300mm 6m 12 Bar Rubber Ring Joint 6 Blue Enquire
1850DRJ.375PN12.6 375mm 6m 12 Bar Rubber Ring Joint 6 Blue Enquire
1850DRJ.450PN12.6 450mm 6m 12 Bar Rubber Ring Joint 4 Blue Enquire
1850DRJ.500PN12.6 500mm 6m 12 Bar Rubber Ring Joint 2 Blue Enquire
**Availbility subject to conversion to PVC-O Enquire

Improved Material Performance

The tough ductile nature of PVC-M allows the use of higher design stress, enabling pipes to be manufactured with reduced wall thickness and larger internal diameters. This delivers greater flow capacity and lower pumping costs than PVC-U pipes.

Hydraulic Efficiency

The increased internal diameter for a given external diameter makes Iplex mPVC more efficient conduit than PVC-U and ductile iron.

Light Weight

PVC is already recognised as the lightest and easiest of pipeline materials to handle. Iplex mPVC further increases this advantage. Depending on size and class, weight savings in excess of 10% over PVC-U is available.

System Compatibility

Whether supplied in Series 1 for the irrigation industry or Series 2 for the water industry, Iplex mPVC is fully compatible with existing pipeline systems with the full range of valves and fittings available.

Corrosion resistant

Hydro pipes are totally unaffected by soil and water chemicals and will not be affected by anything that can normally be found in sewage effluent.

No adverse effect on water quality

Hydro pipes will not affect the taste, smell, appearance or health aspects of drinking water.

Product code

1850.100PN12.6 RRJ**

Nominal OD (mm)

Size (mm)

100mm

Coupling

Qty

32

Colour

Blue

  Enquire
Product code

1850.150PN12.6 RRJ**

Nominal OD (mm)

Size (mm)

150mm

Coupling

Qty

18

Colour

Blue

  Enquire
Product code

1850.200PN12.6 RRJ**

Nominal OD (mm)

Size (mm)

200mm

Coupling

Qty

15

Colour

Blue

  Enquire
Product code

1850.250PN12.6 RRJ**

Nominal OD (mm)

Size (mm)

250mm

Coupling

Qty

12

Colour

Blue

  Enquire
Product code

1850.300PN12.6 RRJ**

Nominal OD (mm)

Size (mm)

300mm

Coupling

Qty

6

Colour

Blue

  Enquire
Product code

1850DRJ.375PN12.6

Nominal OD (mm)

Size (mm)

375mm

Coupling

Qty

6

Colour

Blue

  Enquire
Product code

1850DRJ.450PN12.6

Nominal OD (mm)

Size (mm)

450mm

Coupling

Qty

4

Colour

Blue

  Enquire
Product code

1850DRJ.500PN12.6

Nominal OD (mm)

Size (mm)

500mm

Coupling

Qty

2

Colour

Blue

  Enquire
Product code

**Availbility subject to conversion to PVC-O

Nominal OD (mm)

Size (mm)

Coupling

Qty

Colour

  Enquire

Improved Material Performance

The tough ductile nature of PVC-M allows the use of higher design stress, enabling pipes to be manufactured with reduced wall thickness and larger internal diameters. This delivers greater flow capacity and lower pumping costs than PVC-U pipes.

Hydraulic Efficiency

The increased internal diameter for a given external diameter makes Iplex mPVC more efficient conduit than PVC-U and ductile iron.

Light Weight

PVC is already recognised as the lightest and easiest of pipeline materials to handle. Iplex mPVC further increases this advantage. Depending on size and class, weight savings in excess of 10% over PVC-U is available.

System Compatibility

Whether supplied in Series 1 for the irrigation industry or Series 2 for the water industry, Iplex mPVC is fully compatible with existing pipeline systems with the full range of valves and fittings available.

Corrosion resistant

Hydro pipes are totally unaffected by soil and water chemicals and will not be affected by anything that can normally be found in sewage effluent.

No adverse effect on water quality

Hydro pipes will not affect the taste, smell, appearance or health aspects of drinking water.
