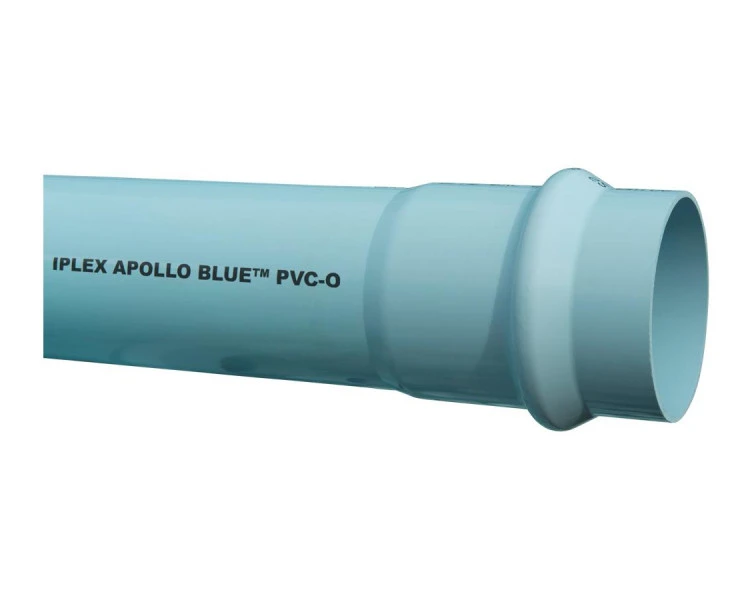

Apollo Blue PN12.5 PVC-O Pressure Pipe Imperial Pipe Series 2 Rubber Ring Joint

Code: 1880



Apollo™ PVC-O Series 2 PN12.5 is a biaxially orientated PVC pressure pipe for use in potable water and rural or stock water infrastructure pipelines.  Iplex manufactures Apollo™ using two new processes known as biaxial extrusion and super socketing, both of which are patented. PVC-O PN12.5 pressure pipes are suitable for:

  • Major potable water supply trunk and reticulation mains
  • Principal water mains
  • Industrial process lines
  • Stock water supply and rural water infrastructure
  • Irrigation and turf water systems

 ApolloBlue Series 2 is coloured blue.



ENQUIRE NOW
Product Code Size Length Pressure Joint Type Qty Colour
1880.100PN12.5.6 100mm 6m 12.5 Bar Rubber Ring Joint 32 Blue Enquire
1880.150PN12.5.6 150mm 6m 12.5 Bar Rubber Ring Joint 24 Blue Enquire
1880.200PN12.5.6 200mm 6m 12.5 Bar Rubber Ring Joint 15 Blue Enquire
1880.250PN12.5.6 250mm 6m 12.5 Bar Rubber Ring Joint 12 Blue Enquire
1880.300PN12.5.6 300mm 6m 12.5 Bar Rubber Ring Joint 6 Blue Enquire

Stronger

Apollo PVC-O’s Biaxially Orientated molecular structure gives it extremely good impact strength, toughness and ductility. This means improved resistance to accidental impact during handling and installation.

Lighter

Iplex Apollo PVC-O is lighter in weight than Iplex PVC-U and PVC-M of the same OD size and similar pressure class. This means improvements in the ease of handling and installation.

Proven

Over the past 10 years Iplex have supplied over 1,000,000 metres of PVC-O into projects in New Zealand.

Increased Flow Capacity

Apollo offers a significantly larger bore and associated higher flow capacity compared with Iplex PVC-U and PVC-M of the same series and equivalent or similar PN class and diameter.

High Impact Resistance

Apollo’s molecular orientation delivers higher impact strength, toughness and ductility compared to Iplex PVC-U pressure pipe.

Fatigue Resistance

Designed to provide long term fatigue performance under the cyclical pressures and dynamic stresses encountered in pumped sewer rising mains.

Seal Ring Locked in Position

Apollo’s factory fitted EPDM jointing seal ring is locked in position in the socket with a bonded, blue coloured polypropylene retaining element. This eliminates potential seal ring displacement during joint assembly.

Quality Assuarance

Manufactured to AS/NZS 4441. Independently certified in accordance with the test requirements of AS/NZS 4441. Standards Mark Licence number SMKP20682.

Apollo PVC-O Rises to Perform

Apollo PVC-O Rises to Perform

In the past, Oakura’s sewage has been treated by septic tanks on each property. Sub-divisional growth and the transient population, during holiday seasons has prompted the installation of a community sewage reticulation system. Raw sewage is now transferred through a twin pipeline, 11 Km, DN150 Rising Sewer main, back to New Plymouth.

Apollo PVC-O was chosen during the design process for its high flow capacity, fatigue performance and durability...

Read more
